1988-1998 GMT400 (C/K1500) Pressurized Coolant Surge Tank & Breather Filter Combo
1988-1998 GMT400 (C/K1500) Pressurized Coolant Surge Tank & Breather Filter Combo
Materials are IN STOCK. Current lead time is about 1 week.
Customizing
Customizing
We offer customization of any of our tanks. Our Combo Tanks can be offered with different fittings to meet your application. Please contact us (email or phone) to customize your tank.
Couldn't load pickup availability

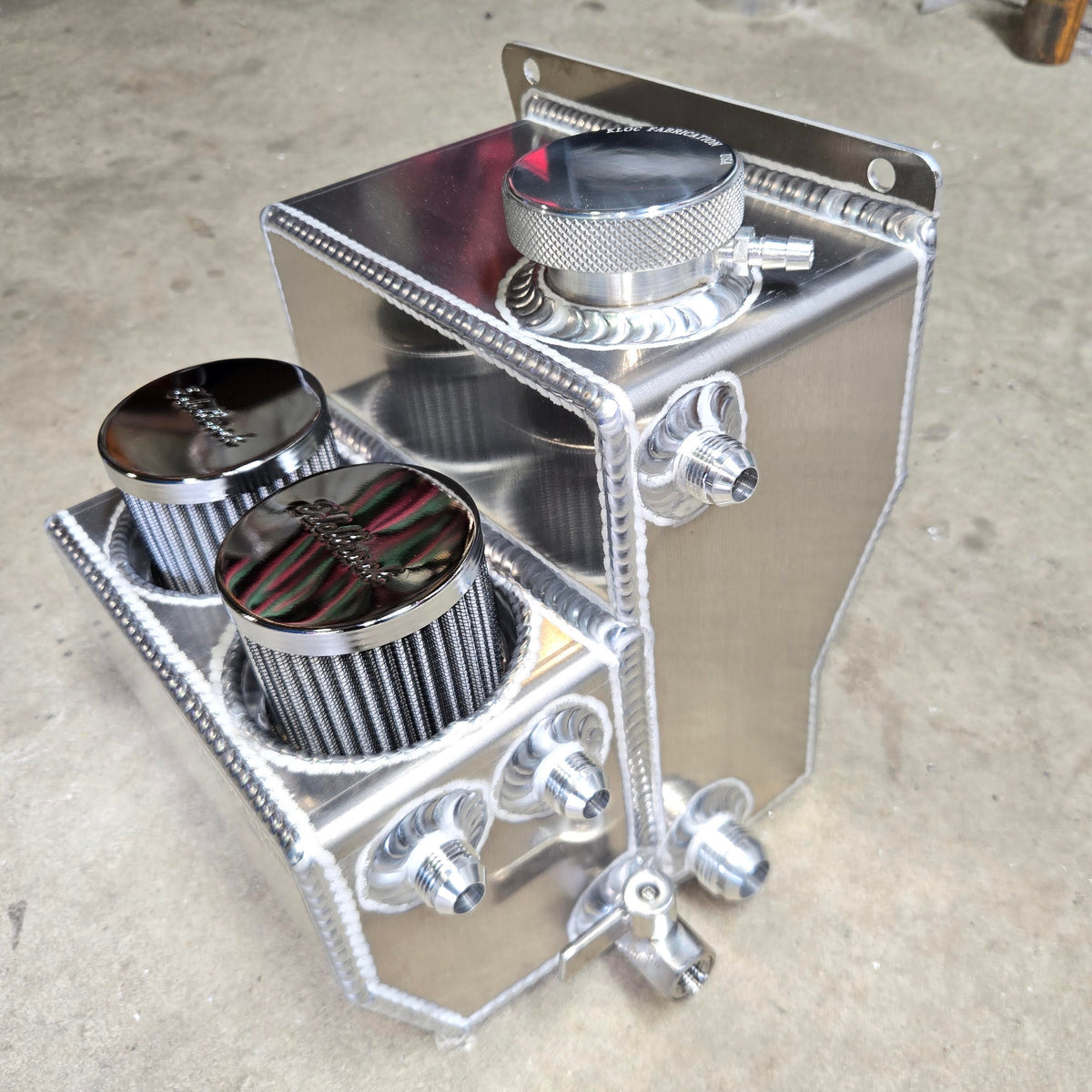

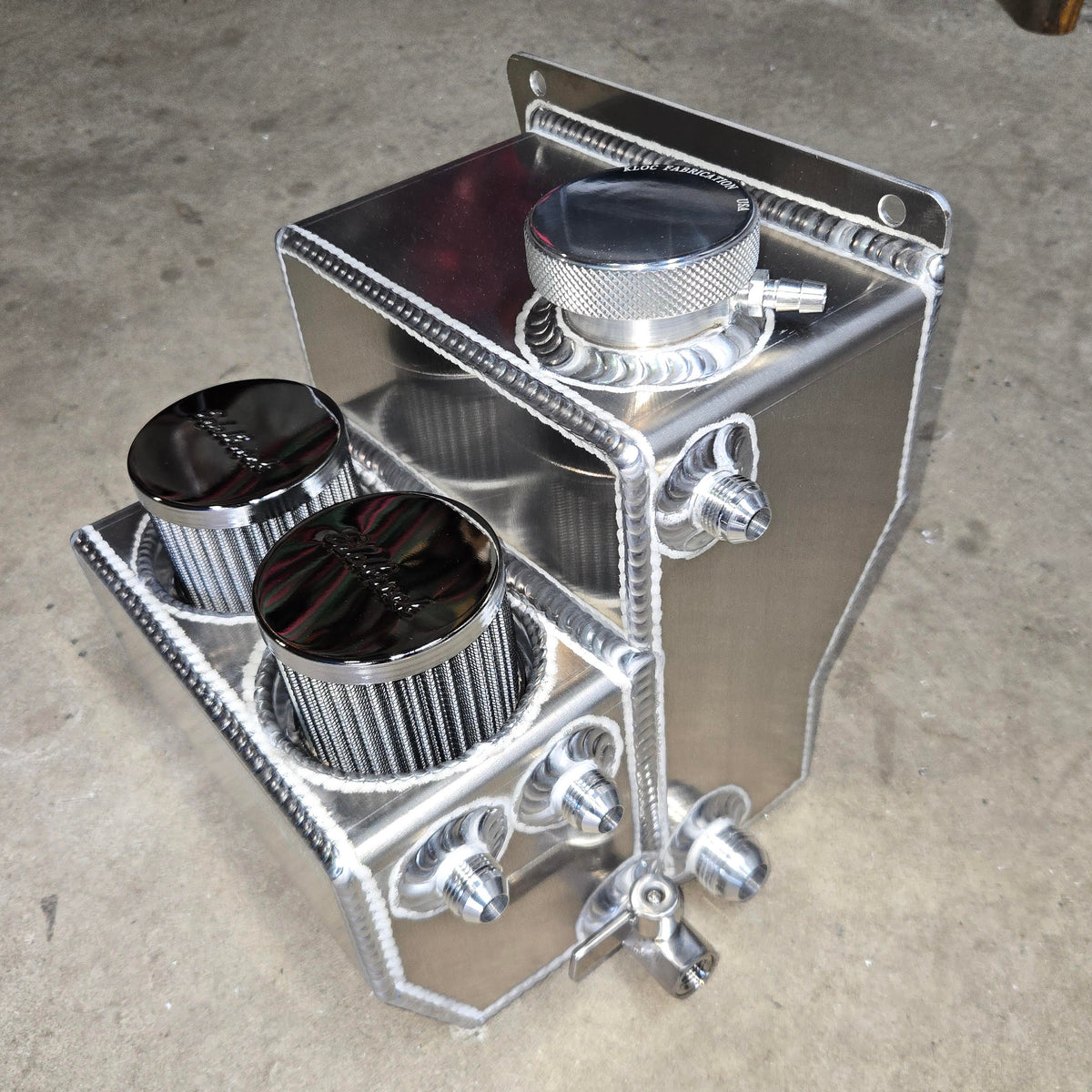

This Combo Tank combines our 1988-1998 GMT400 Pressurized Coolant Surge Tank with a customizable crankcase breather filter (Catch Can), in one direct-bolt-on package.
These are designed to be used on applications where the radiator is NOT equipped with a pressure cap (such as the 1999-2006 GM truck radiators); common with LS Swaps. If your radiator has a pressure cap, you will need this reservoir: 1988-1998 GMT400 (C/K1500) Coolant & Breather Filter Combo Tank – Kloc Fabrication
MADE IN USA
*These are not designed to be plumbed back into the engine in any manner
*We are not responsible for any failure of the Emission Control System or Emission Inspections through modifications of the crankcase breathers, PCV System, etc.
WILL NOT FIT WITH OEM 5.7L AIR FILTER HOUSING
Materials
Materials
- .125" 5052 Aluminum
- Includes (2) M8-1.25 stainless steel bolts and washers for mounting
- Includes -6AN 90 degree swivel for radiator overflow connection
-
Coolant Reservoir
- Direct bolt on construction with mounting tab to lock into firewall - No modification required
- Pressure Cap
- Stainless Steel mounting hardware
- Fitting sizes spec'd to meet your application
- Pressure Tested
-
Breather Filter
- Two Filter Canisters, each double baffled
- Internal 3M stainless steel filter mesh
- 3" Outlet Filters (washable/serviceable)
- Stainless steel drain valve
- Sloped Design to ensure oil accumulates at drain valve
- Customizable AN fitting sizes
-
See What's Inside
Each Canister is double baffled prior to the outlet filter for maximum oil particulate separation.
Sandwiched between the two internal baffles, this 3M stainless steel filter mesh provides exceptional oil particulate separation, while still allowing necessary breathability and airflow.
Both canisters drain into the Breather Filter Can body, and funnel towards the drain valve.
Two 3" outlet filters provide the final method of oil separation. These filters are removable and servicable. They can be washed and re-used, or easily replaced when needed.
Removal of the filters also allows for flushing of the Breather Filter Can body. Simply open the drain valve and flush the can with a solvent such as brake cleaner or mineral spirits and allow to dry.
-
Made In U.S.A.
Tired of living in a disposable world with everything imported from overseas?
So Are We.
100% USA Made (exceptions for AN fittings and Outlet Filters)
-
