Kloc Fabrication

1995-1998 GMT400 LS Engine A/C Relocation Bracket

1995-1998 GMT400 LS Engine A/C Relocation Bracket

$155.00 USD
$155.00 USD
Sale sold out
Finish

A/C Brackets are built to order at this time - Expected 5 to 8 business day lead time for shipment.

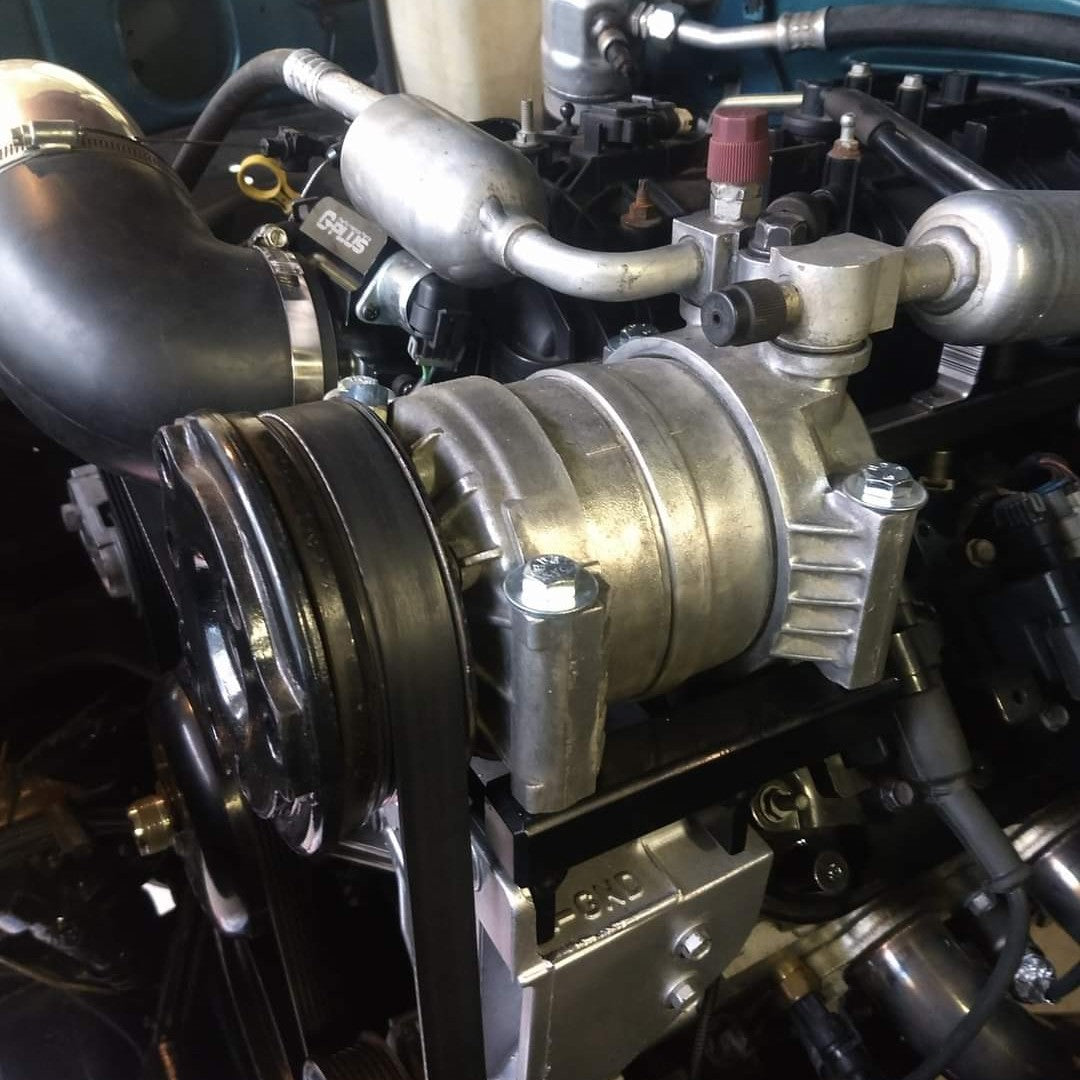

Utilize your 1995-1998 OEM A/C compressor and lines on an LS platform engine with this A/C Relocation Bracket.

*We will be updating product photos shortly

What are Blemished Items?

Blemished brackets are fully functional and identical to "New" brackets but contain visual imperfections in the powder coating. Drips, outgas bubbles, debris, and other minor imperfections may be apparant in blemished brackets.

Blemished brackets have passed tolerance inspection and are within physical specifications. They have been test fit and laser aligned for proper fitment.

Alternator Relocation & Belt Size

LS Alternator Relocation will be necessary. Recommend bracket is GOAT BUILT 4405-20

Typical Belt size with GOAT Built bracket & tensioner (with all other pulleys remaining OEM) is 105" - Part #1050K6. Slight variations are expected.

Notes On Fitment

  • This Bracket allows for installation of the OEM 5.7L Vortec A/C compressor on a LS Engine.
  • LS Engine Alternator Relocation IS Required.
  • Bracket has been test fit with factory D581 ignition coils, valve covers, and intakes (Truck intake and Trailblazer SS intake) only. Fitment with differing configurations may vary.
  • Bracket has been test fit on GEN III ENGINES ONLY

Instructions

"Print Layout" must be selected if viewing on mobile device.

https://docs.google.com/document/d/1vCC56aLnRLHdTSYFsB_W3US_2cyY9R-XPYLKDrFBQv4/edit?usp=sharing

Materials

  • 1008/1010 CRS Steel
  • Powder-Coated for Long Term Protection
  • Includes All Mounting Hardware in 10.9 Grade
View full details

Keep your OEM Lines and Hoses.

We get it. A/C is confusing and often a primary concern when performing a LS Engine Swap in your OBS.

This bracket allows for mounting of the OEM A/C compressor in the factory OBS location, so all of the existing lines, hoses, and fittings can be used.

Simple. Effective. Elegant.

  • Quick and easy installation
  • One solid bracket - no moving parts, no excessive spacers/bushings, etc.
  • Use your existing A/C Compressor
  • Direct bolt-up of OEM A/C lines

  • Made In U.S.A.

    Tired of living in a disposable world with everything imported from overseas?

    So Are We.

    100% USA Made.

  • Free Shipping

    Free Shipping on all orders within the continental U.S.

    Expedited shipping available per request.
