Kloc Fabrication

1988-1998 GMT400 Coolant/Intercooler Combo Tank

1988-1998 GMT400 Coolant/Intercooler Combo Tank

$350.00 USD
$350.00 USD
Sale sold out

Materials are IN STOCK, but need to be fabricated. Please allow 3-5 days for shipment of 2.5/3.5 quart options, and 5-8 days for shipment of 2.75 gallon option.

Intercooler Tank Fitting Size
Intercooler Tank Capacity

Customizing

We offer customization of any of our tanks. Our Tanks can be offered with a Pressurized Fill Cap, Tube Style Sight Glass, or different fittings to meet your application. Please contact us (email or phone) to customize your tank.

This tank combines our flagship 1988-1998 GMT400 Coolant Reservoir with an additional intercooler coolant tank.

Intercooler tank capacity is measured when completely full.

Reservoirs will come standard with 6AN fitting for radiator overflow connection. (The 4AN upper fitting in photos will not be standard unless specified). Intercooler tank is customizable for the specific fitting size needed for your application. If you need different fittings or cap configurations (pressurized/vented) - just reach out to us to specify.

If you are using Mild Slosh Tubz, you will need this tank: 1988-1998 GMT400 Coolant/Intercooler Reservoir Combo Tank SLOSH TUBZ – Kloc Fabrication

Materials

  • Laser Cut .125" 5052 Aluminum
  • Includes (2) M8-1.25 stainless steel bolts and washers for mounting
  • 1.6 Bar Pressure Cap on Intercooler Tank - can be offered with non-pressure cap if needed.

Notes on Aluminum Finish

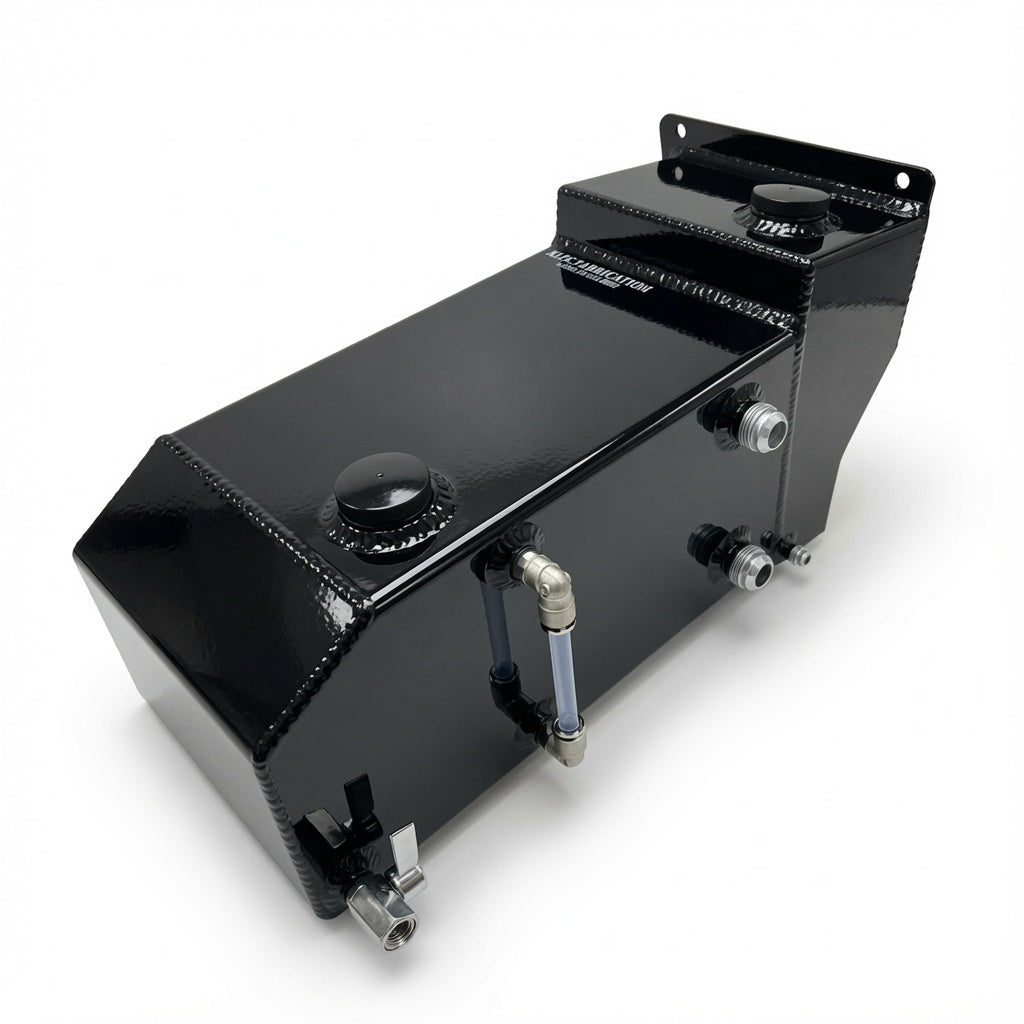

Due to regular changes in material availability since the tariffs were implemented, slight color variations of the 5052 aluminum have been noted. All of our current Intercooler Combo Tanks are more gold in color, as shown in the "3.5 Qt." photos.

Shipping & Returns

  • Free Shipping in the Continental U.S.
  • Expedited Shipping available upon request.
View full details

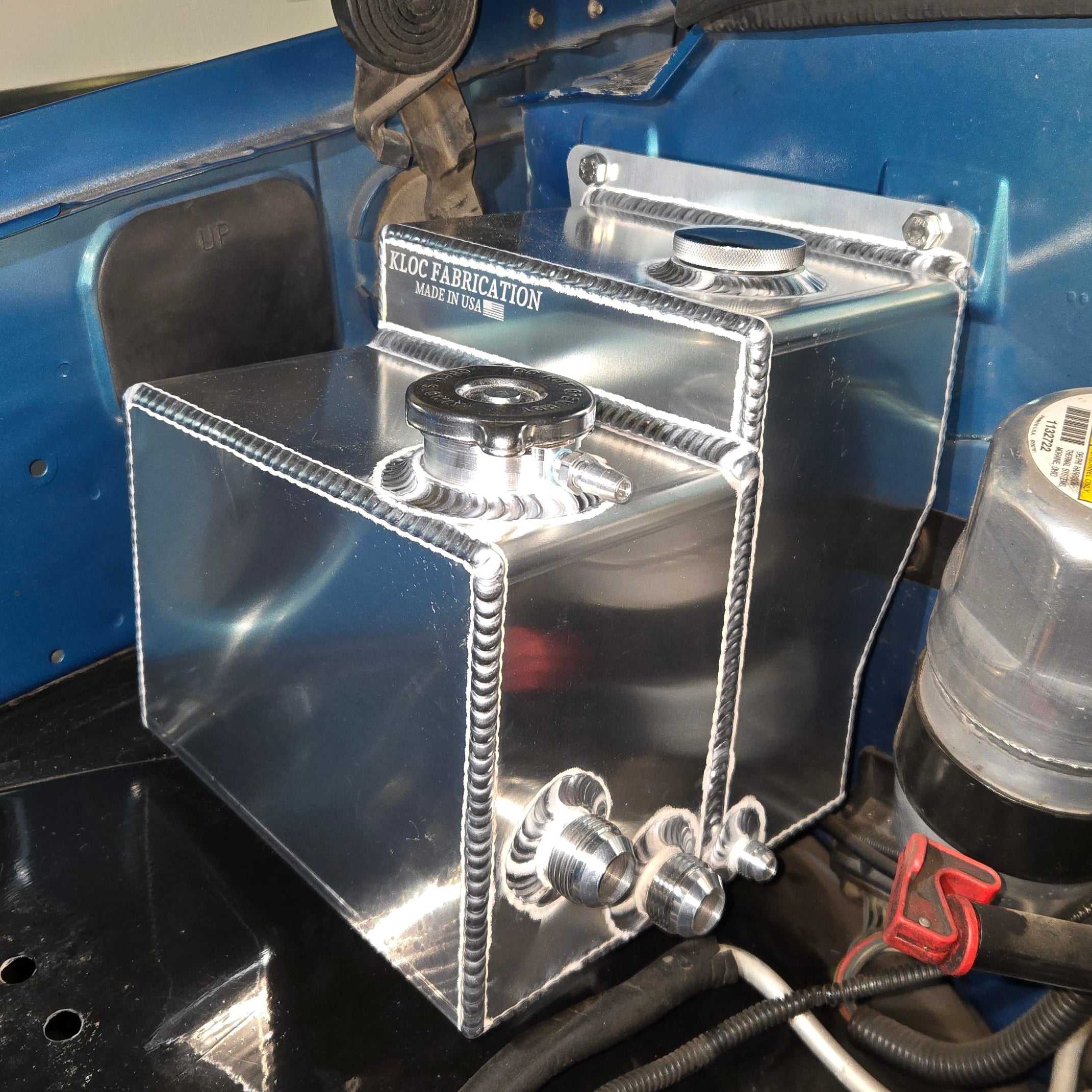

Above photos show the 2.5 quart and 3.5 quart options.

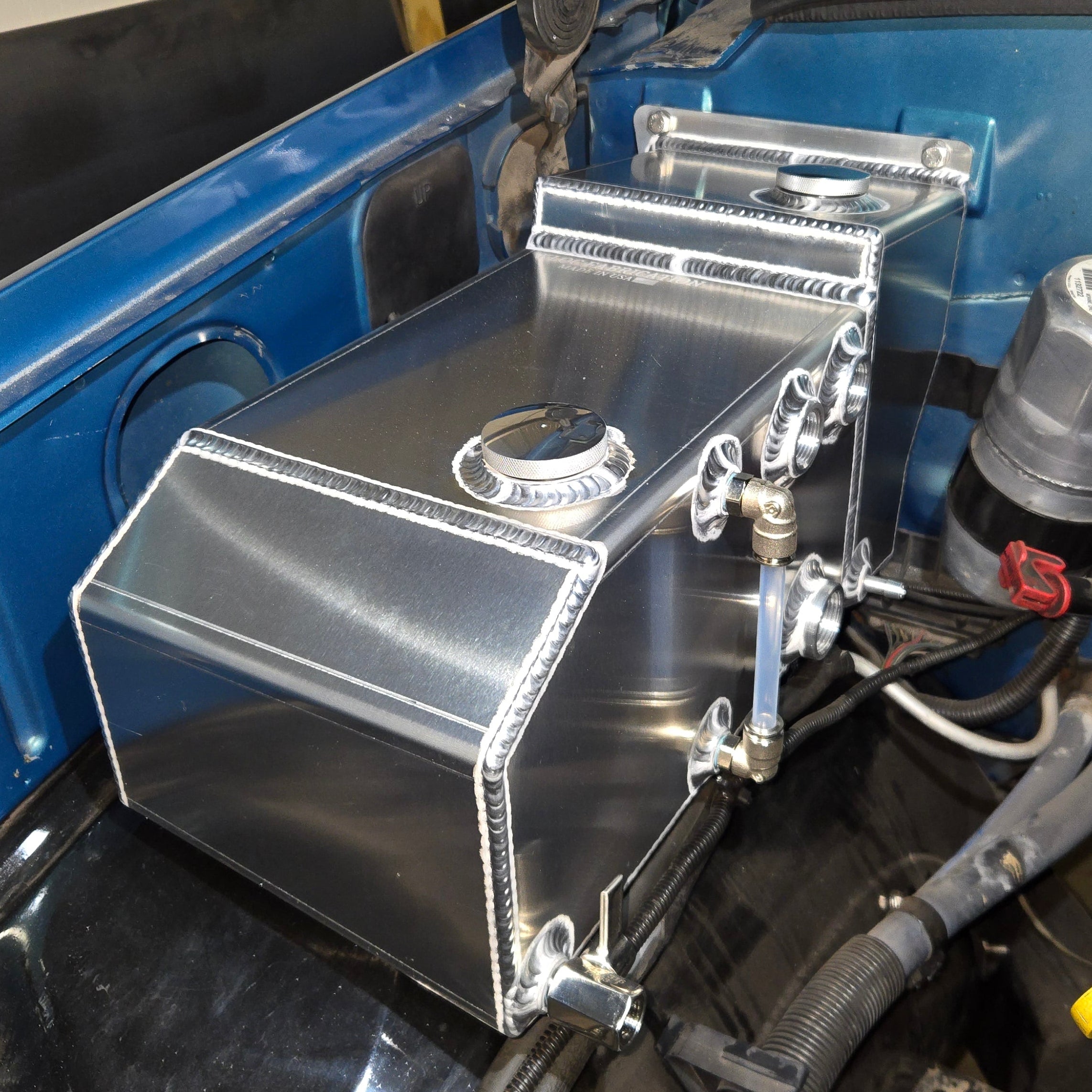

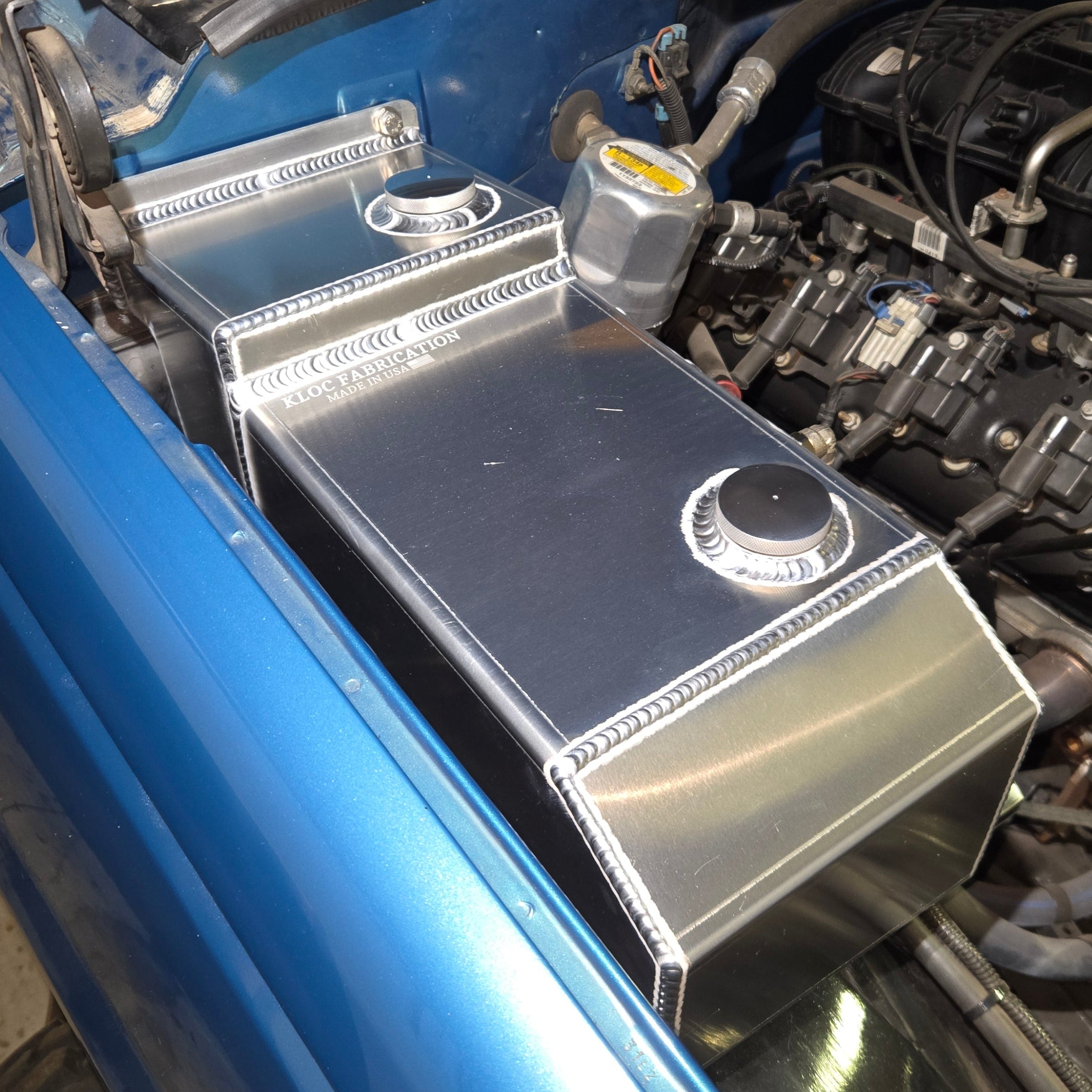

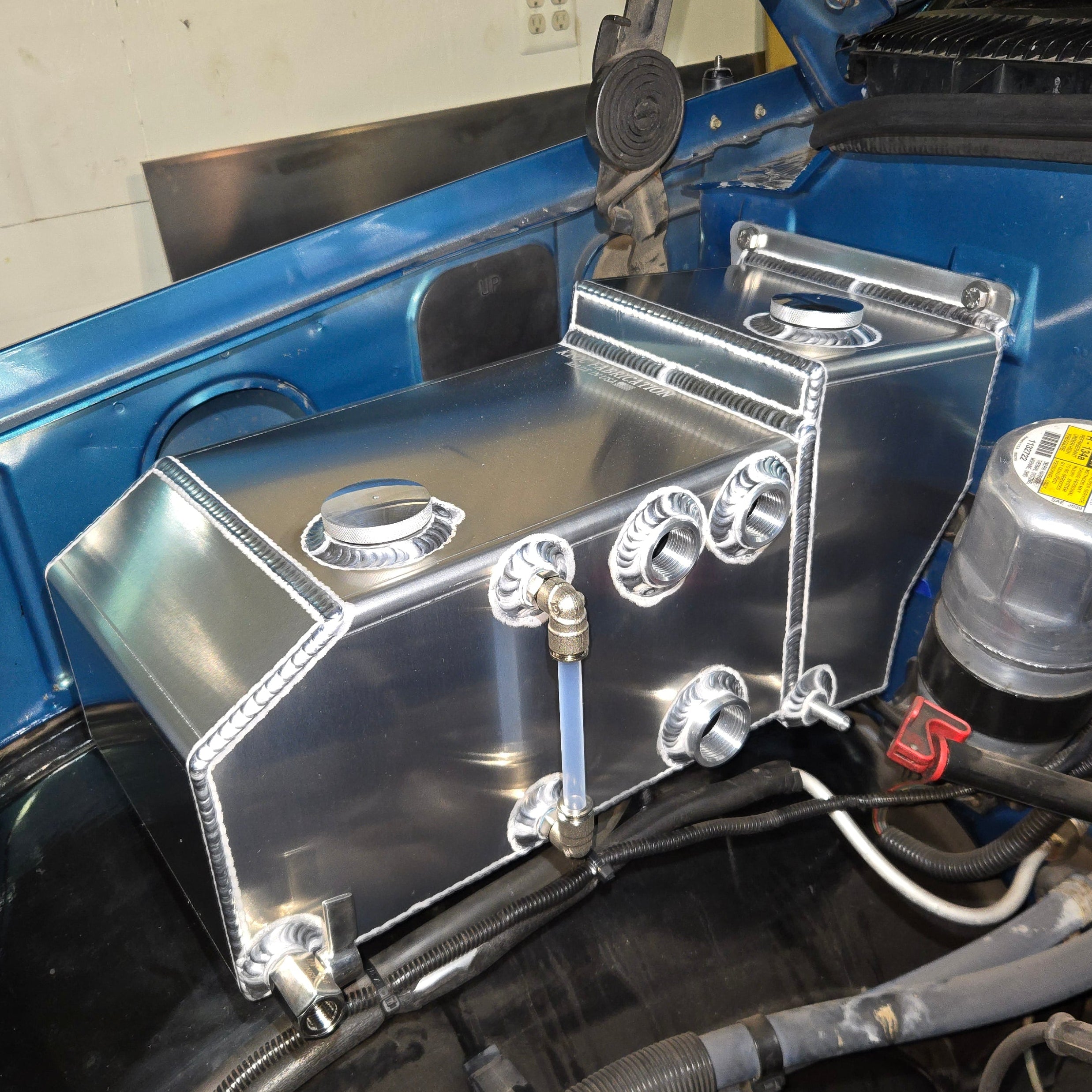

Above photos show the 2.75 Gallon option. The tank in the photos was customized with NPT fittings. Stock options will be AN fittings - reach out to us if you need customized fittings.
