1993-1998 GMT400 (C/K) 6.5L Diesel Coolant Reservoir
1993-1998 GMT400 (C/K) 6.5L Diesel Coolant Reservoir
Materials are IN STOCK. Current lead time is about 1 week.

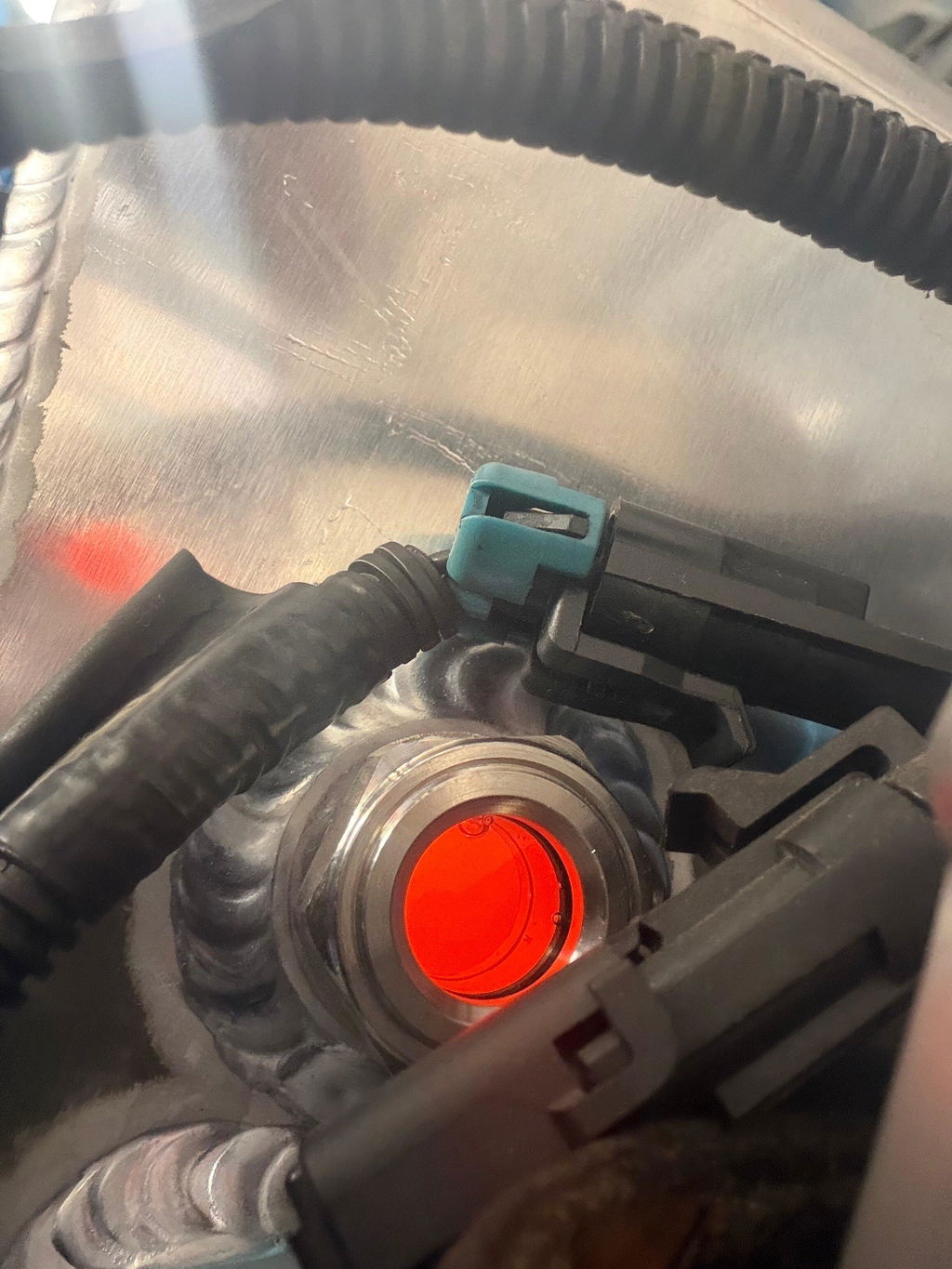

Info about Sight Glass
Info about Sight Glass
Cold-Fill Sight Glasses are placed on the driver's side facing panel, directly above the low-coolant sensor. This location allows for easy view of cold-fill coolant level from across the engine bay at a quick glance.
IMPORTANT NOTE
Reservoirs with sight glass ordered before 5/6/26 should be cold-filled to top of sight glass
Reservoirs with sight glass ordered after 5/6/26 should be cold-filled to middle of sight glass.
As of 7/1/26, sight glasses are moved forward 1", towards the front weld. This allows for easier viewing around AC Condenser.
Couldn't load pickup availability
Exact replacement for your pressurized 6.5L Diesel Coolant Reservoir.
We are the first and only company to offer a direct bolt on replacement reservoir for the 6.5L diesel that requires no modification.
Low coolant level sensor included - plugs directly into the OEM harness.
This tank includes the OEM 1" lower fitting to T into the lower radiator hose, and a 1/2" side fitting to connect to the molded radiator bleed hose. The 1/2" side fitting is a swivel hose, intended to work with either OEM hose barb orientation (pointed upwards or outwards) If you need a different hose barb size, please let us know via phone/email.
Has been test fit with all 6.5L air filter housings.
Materials
Materials
- .125" 5052 Aluminum
- Includes (2) M8-1.25 stainless steel bolts and washers for mounting
- Billet Machined 1.1 Bar Pressure Cap
Notes on Material Finish
Notes on Material Finish
Reservoirs will be Natural Aluminum. Natural aluminum reservoirs may have:
- Minor handling scratches and tooling marks
- Slight color variations across panels
- Slight color variations from product photos
- Other minor imperfections
We handle and fabricate these reservoirs with tremendous care to make sure they are as nice and scratch free as possible.
Shipping & Returns
Shipping & Returns
- Free Shipping in the Continental U.S.
- Expedited Shipping available upon request.

Clean, Classy, 100% USA MADE.
Our 6.5L Diesel coolant tanks are the perfect replacement for your OEM reservoir. Direct bolt on in place of the factory plastic reservoir, no modification required.
Features Include:
- Direct bolt on construction with mounting tab to lock into firewall
- Plug and Play Coolant Level Switch, internally baffled to prevent false reading
- Pressurized fill cap (1.1 Bar)
- 1" Lower Fitting, Billet Machined
- 1/2" Stainless Steel Swivel Bleed Fitting
- Stainless Steel mounting hardware
-
Made In U.S.A.
